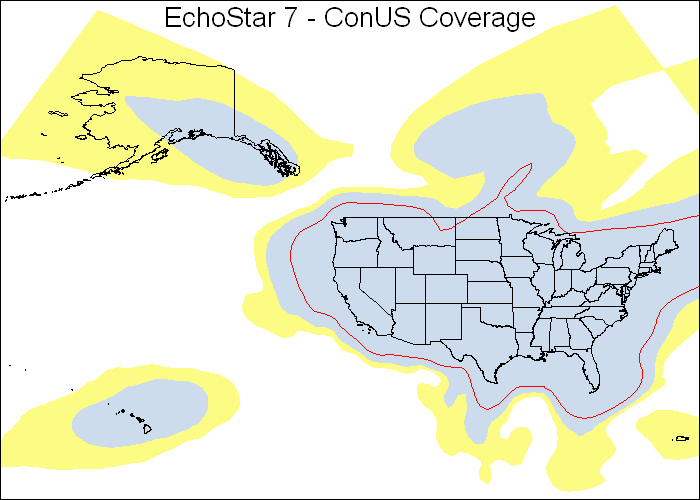

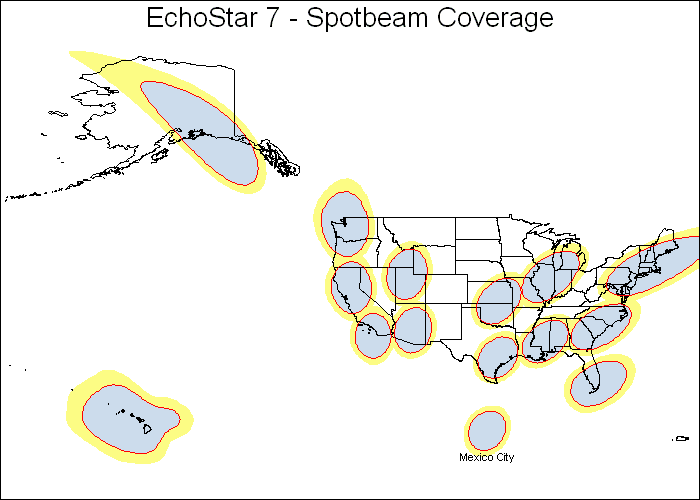

Historical Dish Network Coverage from 119° The following diagrams are based on the FCC/ITU filings for Echostar 7. E7 is no longer in service at 119°. Conus coverage of Echostar 7 at 119° (Replaced by E14). Spot beam coverage of Echostar 7 at 119° (Replaced by E14).

Spotbeam Maps

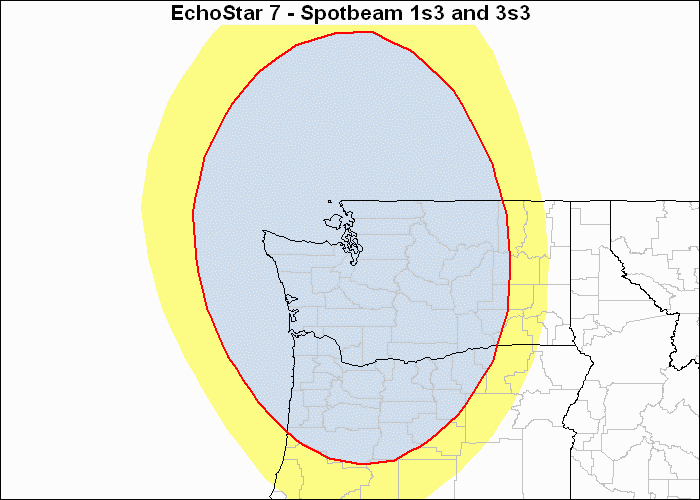

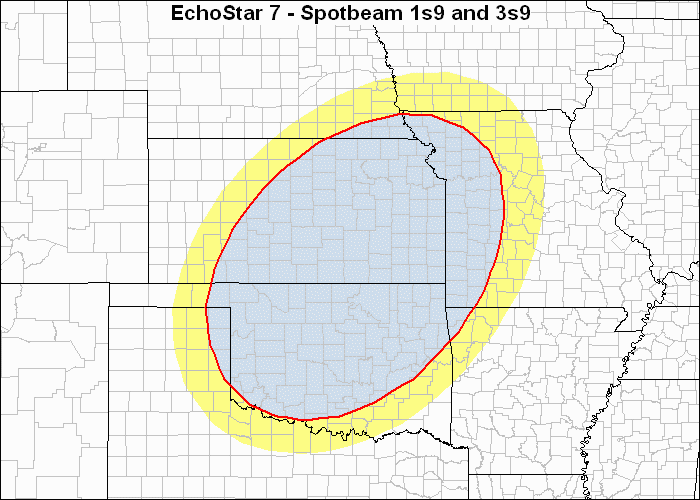

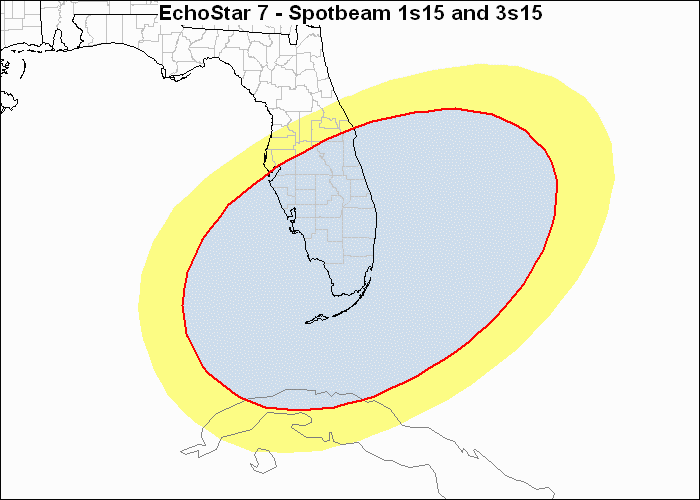

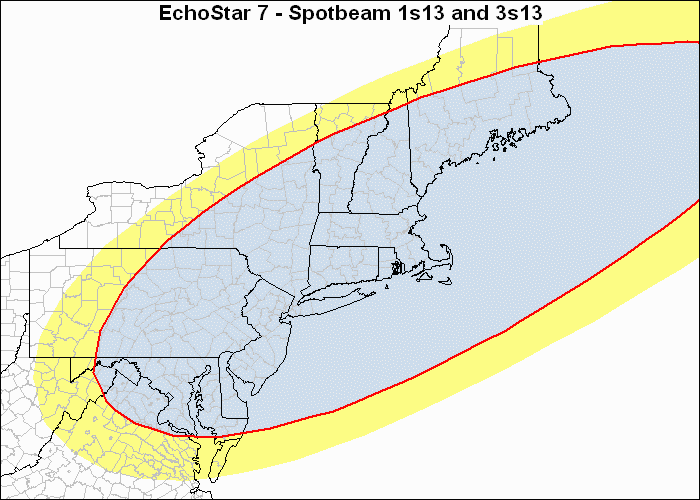

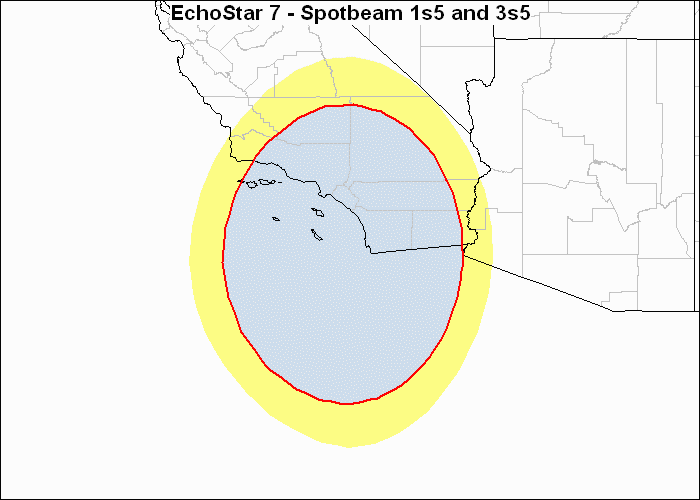

TID Downlink Uplink Satellite 81 1 s 3 12   Echostar 7 119°   View 41 1 s 5 1   Echostar 7 119°   View 51 1 s 9 1   Echostar 7 119°   View 61 1 s 13 11   Echostar 7 119°   View 71 1 s 15 2   Echostar 7 119°   View 83 3 s 3 14   Echostar 7 119°   View 43 3 s 5 3   Echostar 7 119°   View 53 3 s 9 3   Echostar 7 119°   View 63 3 s 13 13   Echostar 7 119°   View 73 3 s 15 4   Echostar 7 119°   View

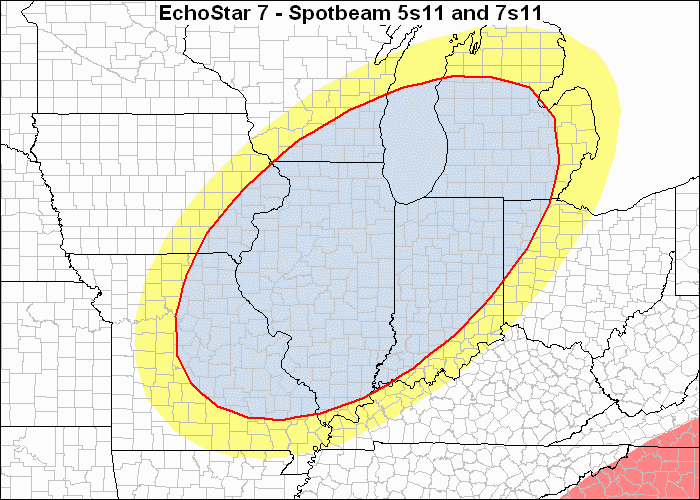

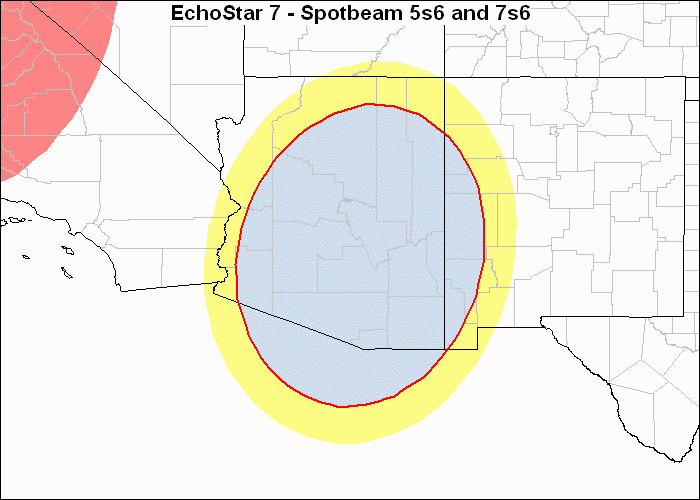

TID Downlink Uplink Uplinked From 45 5 s 4 5   Echostar 7 119°   View 55 5 s 6 5   Echostar 7 119°   View 65 5 s 10 15   Echostar 7 119°   View 75 5 s 11 6   Echostar 7 119°   View 85 5 s 14 16   Echostar 7 119°   View

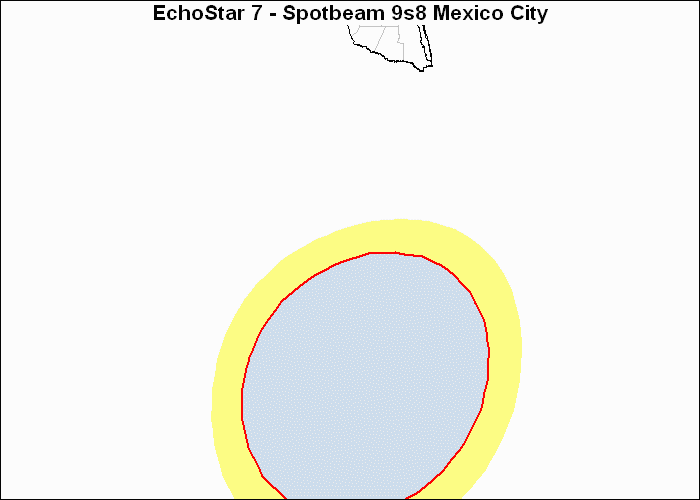

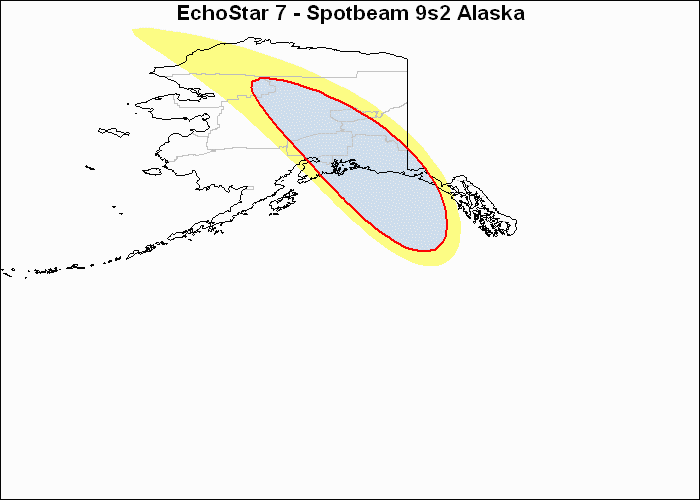

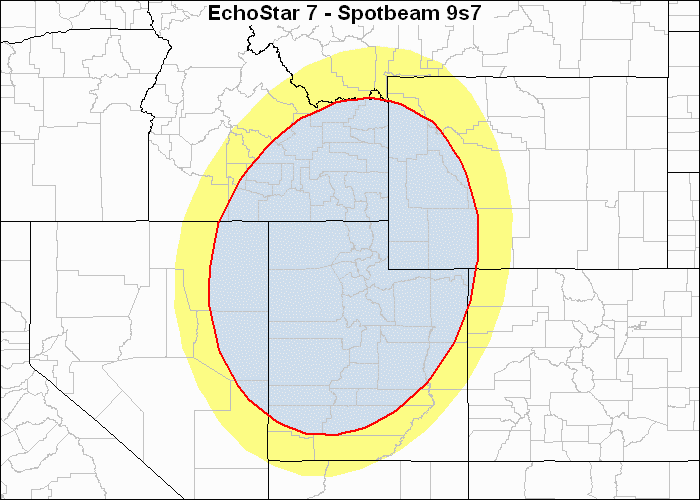

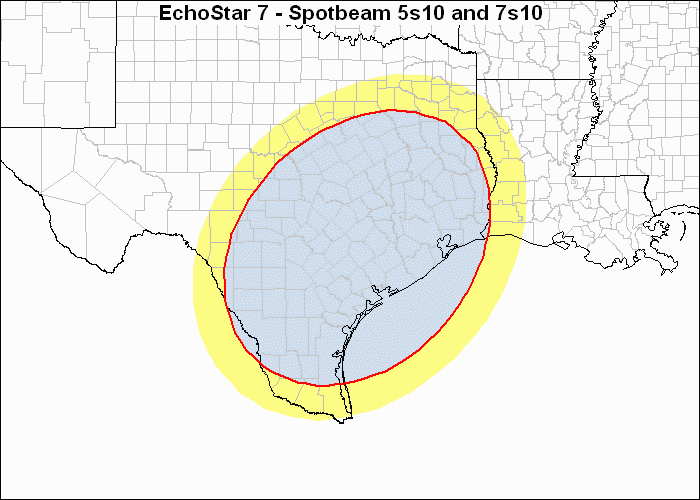

TID Downlink Uplink Uplinked From 47 7 s 4 7   Echostar 7 119°   View 57 7 s 6 7   Echostar 7 119°   View 67 7 s 10 17   Echostar 7 119°   View 77 7 s 11 8   Echostar 7 119°   View 87 7 s 14 18   Echostar 7 119°   View 49 9 s 1 9   Echostar 7 119°   View 79 9 s 2 10   Echostar 7 119°   View 69 9 s 7 19   Echostar 7 119°   View 59 9 s 8 9   Echostar 7 119°   View 89 9 s 12 20   Echostar 7 119°   View

Uplinks to Echostar 7 at 119°

Uplink
TP		TID	Downlink			TID	Downlink
1		41	1	s 5		51	1	s 9
2		2		ConUS		71	1	s 15
3		43	3	s 5		53	3	s 9
4		4		ConUS		73	3	s 15
5		45	5	s 4		55	5	s 6
6		6		ConUS		75	5	s 11
7		47	7	s 4		57	7	s 6
8		8		ConUS		77	7	s 11
9		49	9	s 1		59	9	s 8
10		10		ConUS		79	9	s 2
11		11		ConUS		61	1	s 13
12		12		ConUS		81	1	s 3
13		13		ConUS		63	3	s 13
14		14		ConUS		83	3	s 3
15		15		ConUS		65	5	s 10		Leased to NPS
16		16		ConUS		85	5	s 14
17		17		ConUS		67	7	s 10
18		18		ConUS		87	7	s 14
19		19		ConUS		69	9	s 7
20		20		ConUS		89	9	s 12
21		21		ConUS

All uplinks are transmitted from either Cheyenne or Gilbert.
Note: TPs 22 through 32 are licensed to and used by DirecTV.

---
