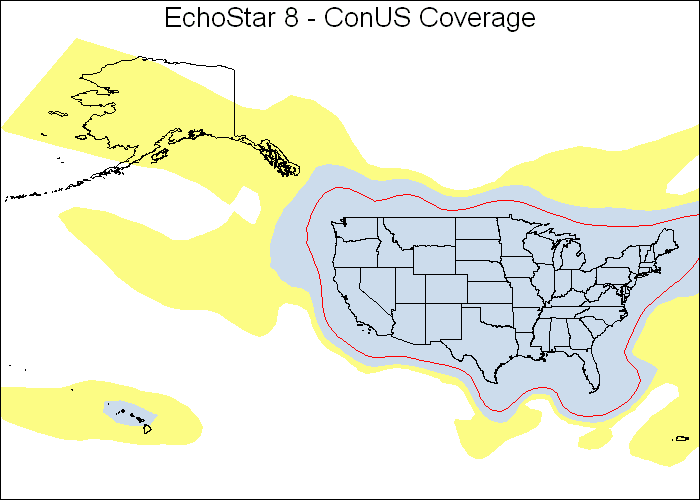

Historical Dish Network Coverage from 110° The following diagrams are based on the FCC/ITU filings for Echostar 8. E8 is no longer located at 110° (moved to 77°). Conus coverage of Echostar 8 at 110° (Replaced by E11). Spot beam coverage of Echostar 8 at 110° (Replaced by E10).

Uplinks to Echostar 8 at 110°
Echostar 8 is no longer located at 110°

Uplink
TP		TID	Downlink			TID	Downlink
1		201		ConUS		272	2	s 2
2		242	2	s 11		252	2	s 6		or 202 ConUS
3		203		ConUS		274	4	s 15
4		244	4	s 5		254	4	s 9		or 204 ConUS
5		205		ConUS		276	6	s 2
6		246	6	s 5		256	6	s 12		or 206 ConUS
7		207		ConUS		278	8	s 14
8		248	8	s 13		258	8	s 6		or 208 ConUS
9		209		ConUS		280	10	s 3
10		250	10	s 13		260	10	s 6		or 210 ConUS
11		211		ConUS		282	2	s 8
12		212		ConUS		262	2	s 4
13		213		ConUS		284	4	s 16
14		214		ConUS		264	4	s 1
15		215		ConUS		286	6	s 10
16		216		ConUS		266	6	s 1
17		217		ConUS		288	8	s 7
18		218		ConUS		268	8	s 4
19		219		ConUS		290	10	s 7
20		220		ConUS		270	10	s 4
21		221		ConUS
22		222		ConUS
23		223		ConUS
24		224		ConUS
25		225		ConUS
26		226		ConUS
27		227		ConUS
28				ConUS						Not used at 110°
29		229		ConUS
30				ConUS						Not used at 110°
31		231		ConUS
32				ConUS						Not used at 110°

All uplinks were transmitted from either Cheyenne or Gilbert.
Note: TPs 28, 30 and 32 at 110° are licensed to and used by DirecTV.

---
